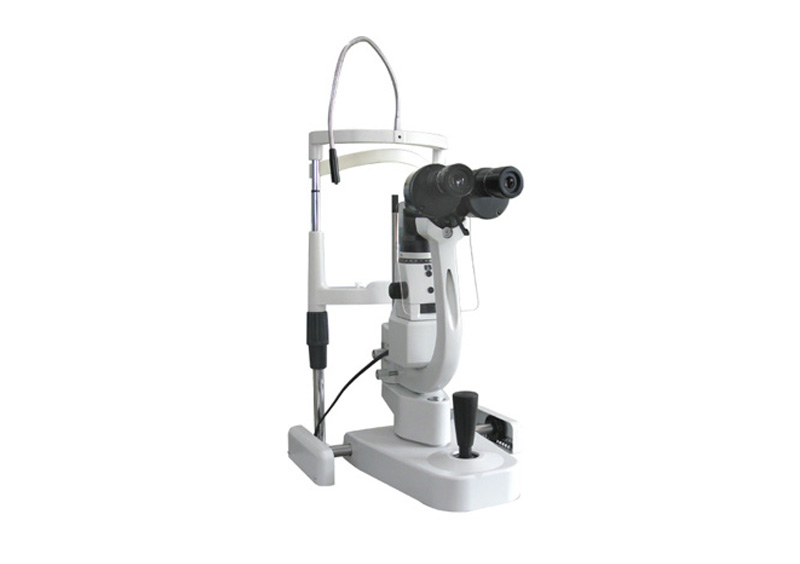

YZ5X Slit Lamp Microscope
SKU: 145181
Product Description
The product is high cost-effective with light source underneath design,compact structure and reliable performance to satisfy the basic needs in optometric and ophthalmological examination.
| Microscope | |
| Microscope Type | Galileo magnification changer with converging |
| Magnification Change | Switch zoom |
| Eyepiece | 10x |
| Magnifications
(Field of View) |
10x( φ22.5 mm ), 16x( φ14 mm ) |
| Pupilary Adjustment | 55 mm～82 mm |
| Diopter Adjustment | ±6D |
| Slit Illumination | |
| Slit Width | continuously variable from 0 ～14 mm adjustable(at 14 mm, slit becomes a circle ) |
| Slit Height | continuously variable from 1 mm～14 mm |
| Slit Angle | 0°～180° ( continuously adjustable both vertical and horizontal) |
| Slit Inclination | None |
| Aperture Diameter | φ14mm, φ9mm, φ5.5mm, φ0.3mm |
| Lamp | 6V/20W Halogen bulb |
| Maximum Illuminance | ≥150,000 Lx |
| Filter | Thermal safety, red-free, cobalt blue |
| Power | |
| Input Voltage | AC 220V /110V ±10% |
| Electrical Safety Standard | IEC 60601－1, Class I, Type B |
| Dimension & Weight & Accessories | |
| Packing Volume | 720 mm x 495 mm x 480 mm |
| Total Weight | 23 Kg |
| Optional Accessories | Applanation tonometer, trihedron lens, gonioscope, funduscope, aspheric lens |
